NANOMIZER Inc.

Product Line-Up

Product Line-UP

■ Nano-Emulsion Fuel Production System

【 Summary 】

　 Production of eco-friendly Nano-Emulsion Fuel is now possible using Nanomizer Technology.
　 In-line supply of highly stable and fuel-efficient emulsion fuel that is completely unlike conventional
　 emulsion fuels.

【 Characteristics 】

High fuel-efficiency but low cost based on years of research:
5～20% fuel reduction with burner, 5～30% reduction with generator (actual performance)
Our proprietary pulverization technology produces smaller water particles resulting in higher stability
Wide range of applications: Light Oil, Heavy Oil, Bunker Oil, Waste Oil, etc
Small-footprint allows direct installation in an existing line.
Selectable capacities according to application:
300L/h (NMES-F300) or 1000L/h (NMES-F1000)
Performance optimization according to equipment and application in order to maximize fuel savings
Simple one-touch operation with buttons
Operating conditions can be easily verified through the Liquid Crystal Panel.
Monitoring system is available for detailed after-service (option).
・Quick detection of any abnormal operation.
・Automatic notification of maintenance requirements and replacement of consumables and
　parts depending on the usage condition.

■ **System Specifications**

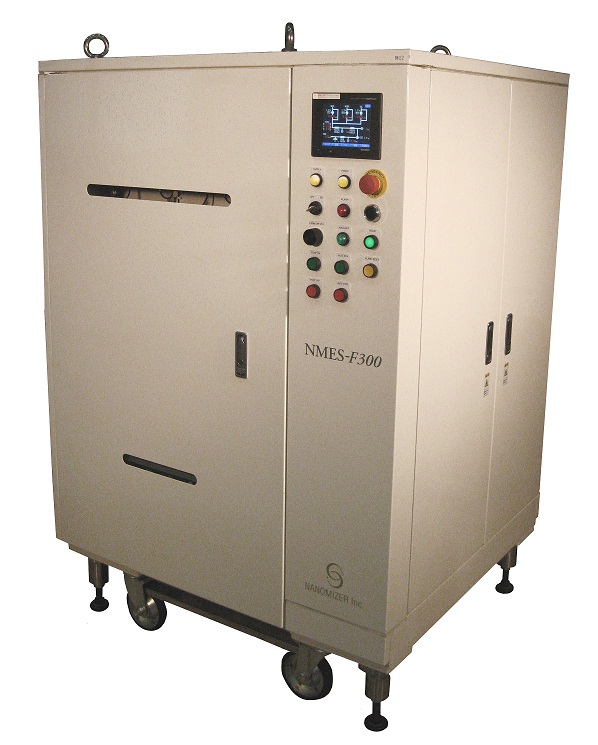

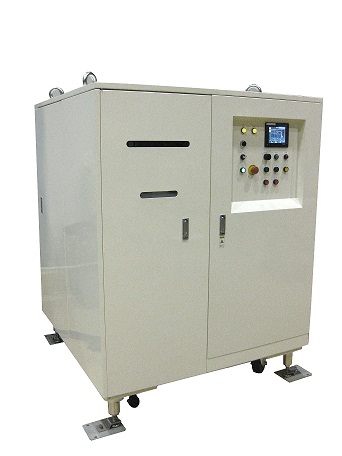

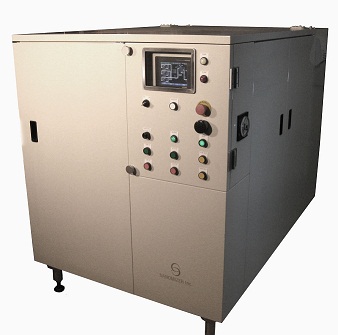

Model	NMES-F300		NMES-F1000
Model	Explosion-Proof	Non Explosion-Proof	Non Explosion-Proof

Power & Voltage	3 phase AC200V. 50/60Hz	3 phase AC200V. 50/60Hz	3 phase AC200V. 50/60Hz
Power Consumption	6.5 kW	7.2 kVA	13.2 kVA
Compressed Air Used	0.3 MPa. over 30L/min	0.3 MPa. over 30L/min	0.3 MPa. over 30L/min
Rated Capacity	300L/h	300L/h	1000L/h
External Dimensions	(Main) W1100×D1300×H1400 (control panel) W1100×D400×H1400	W1000×D1100×H1600	W1350×D1380×H1750
Weight	900 kg	700 kg	1300 kg
Others	Explosion-Proof (Zone 1 & 2)	Integrated Control Panel	Integrated Control Panel

■ Nano-Emulsion Fuel Surfactant

【 Summary 】

　Other than certain fuel types such as bunker fuel, surfactant is essential for making emulsion fuel.
　Our company has succeeded in developing our own proprietary surfactant which has been one of
　the key cost factors up till now.

【 Characteristics 】

Using special ingredients, the amount added is one-tenth of that in the past
Previously 3-10% → NANOEMAER 0.3-0.5%
Drastic reduction in cost of additive has been achieved

■ Nanoemer GFA-001

Appearance	Brackish brown liquid
Relative Density（25℃）	0.99
Viscosity（25℃）	211 cSt
＊ The additive amount is different according to fuel type.
